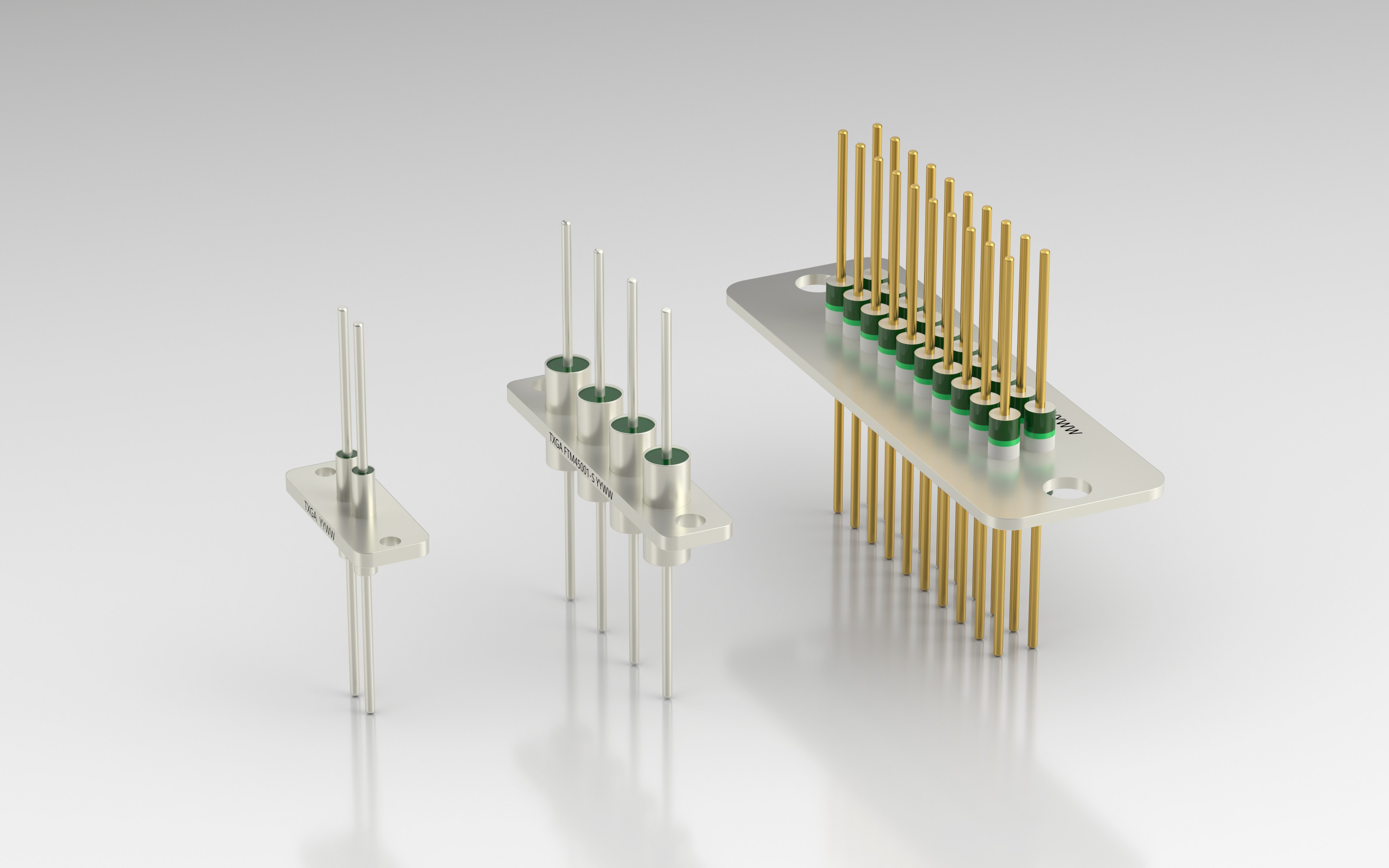

TXGA EMI filter plate can provide EMI protection for critical sensitive components in complex electromagnetic environments

TXGA EMI filter plate is an integrated electromagnetic interference suppression device developed for the electromagnetic compatibility requirements of high reliability electronic systems. The full range covers 20-50 digit specifications and offers center to center spacing of 2.54mm and 4.5mm, which can be customized. Supports both single row and double row layouts. The working temperature range covers the entire temperature range of -40 ℃ to+85 ℃. The product adopts a filtering circuit architecture and supports customized capacitance values. It can provide EMI protection for critical sensitive components in complex electromagnetic environments, effectively blocking the path of conducted interference and improving the electromagnetic compatibility of the whole machine. It meets the strict standards of industries such as aerospace, medical, and communication.

Product Features

Integrated assembly design
Adopting an integrated structure, compared with the traditional discrete filter compartment assembly scheme, it reduces the assembly cost and process complexity of the entire filtering module.

High reliability environmental adaptability
By using high-strength insulation substrate and integrated structure, the product has completed reliability verification such as vibration, impact, and temperature cycling. The working temperature range covers the entire temperature range of -40 ℃~+85 ℃, and can withstand environmental stress under extreme working conditions.

High density integrated configuration
Compact layout design, a single module can integrate up to 50 independent filtering channels, which can save more space compared to discrete filters and better meet the design requirements of high-density miniaturized electronic systems.

Product Specifications
Number of digits: 20-50 digits
Center distance: 2.54mm-4.5mm (customizable)
Rows: single row, double row
Current (maximum): 1A
Voltage (maximum): 100V
Working temperature range: -40 º C~+85 º C
Filter circuit: C/Pi
Capacitance value: 100/1000/2000pF ± 20% (customizable)

Application Industry
Engine controller
Implantable defibrillator
monitoring device
Cellular base station
graphics workstation
