Why 0.75 μ m gold-plated D-shaped connector pins are indispensable for the industrial field

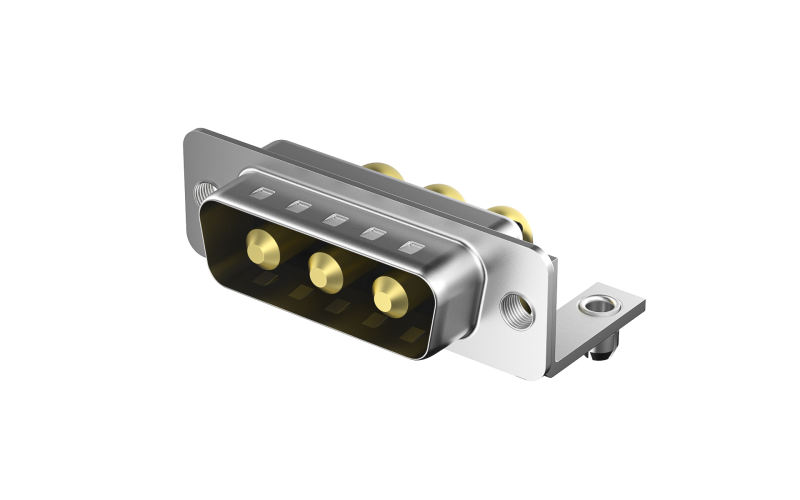

In conventional scenarios such as industrial automation and communication base stations, equipment interfaces need to balance basic reliability and cost. TXGA's 0.75 μ m gold-plated D-shaped connector, with communication grade standard gold plating process as its core, provides a cost-effective and stable interconnection solution for industrial equipment in medium load and conventional environments, perfectly adapting to the connection needs of most general industrial control scenarios.

Advantages of Core Coating Process
The core feature of this D-shaped connector is the use of a 0.75 μ m thick gold plating process, which meets the communication grade gold plating standard. Compared with ordinary consumer grade thin plating products, the performance improvement is very significant:
1. Basic wear resistance performance: Decorative gold plating with a coating thickness far exceeding 0.1~0.2 μ m can withstand about 500 times of insertion and extraction friction, avoiding premature exposure and oxidation of the underlying substrate
2. Conventional anti-corrosion ability: Combined with a 1-2.5 μ m bottom nickel plating process, it can resist moisture and mild salt spray erosion in ordinary industrial environments, and maintain stable contact performance for a long time
3. Stable electrical conductivity: The low resistance characteristics of the gold material, combined with a compliant thickness coating, can maintain stable contact resistance for a long time, ensuring uninterrupted transmission of conventional signals

Product performance parameters
Thickness of gold plating layer: 0.75 μ m
Contact resistance: 5m Ω
Insulation resistance: 5000M Ω
Voltage endurance: 1000V AC r.m.s
Mechanical lifespan: ≥ 500 insertions and removals
Working temperature: -40 ℃~+105 ℃

Relying on the balanced performance brought by the 0.75 μ m gold plating layer, this D-shaped connector can be widely adapted to multiple general industrial scenarios:
Conventional signal interconnection of industrial automation PLC and CNC equipment
Internal interfaces of communication base stations and data center racks
Interface of detection instruments and meters in indoor conventional environment
Small industrial control equipment with compact space and the need for centralized transmission of multiple signals
Batch industrial supporting projects that are cost sensitive and have no extreme corrosion requirements
