TXGA RF Connector Series

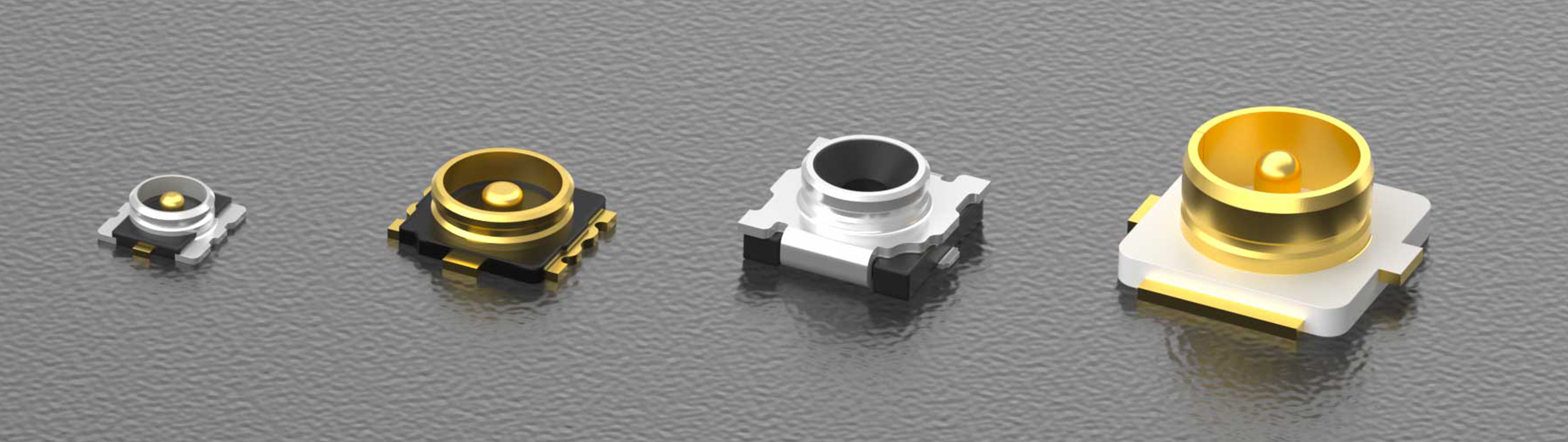

1、 MCRF RF connector
The frequency range of MCRF connectors is 0-11GHz, with a footprint as small as 1.2 * 1.2mm and a minimum combination height of 0.8mm. For devices with limited space and high requirements for signal transmission speed, MCRF connectors are an ideal choice. At the same time, the standing wave ratio of the connector is 1.4 Max, which reduces energy loss while supporting high-frequency data transmission, providing a high-quality interconnection solution for communication equipment.

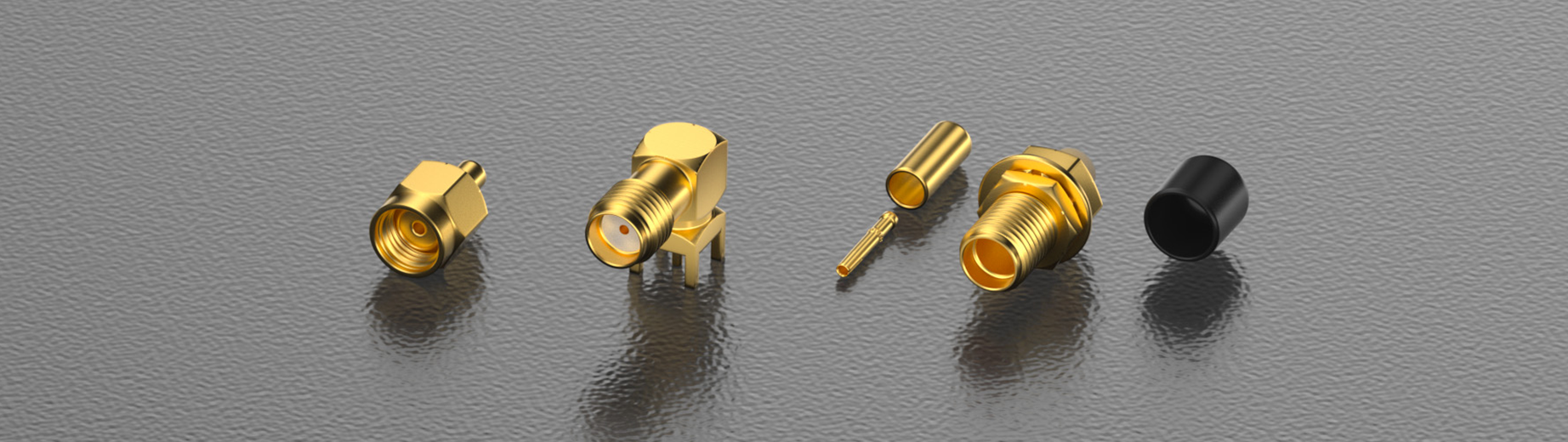

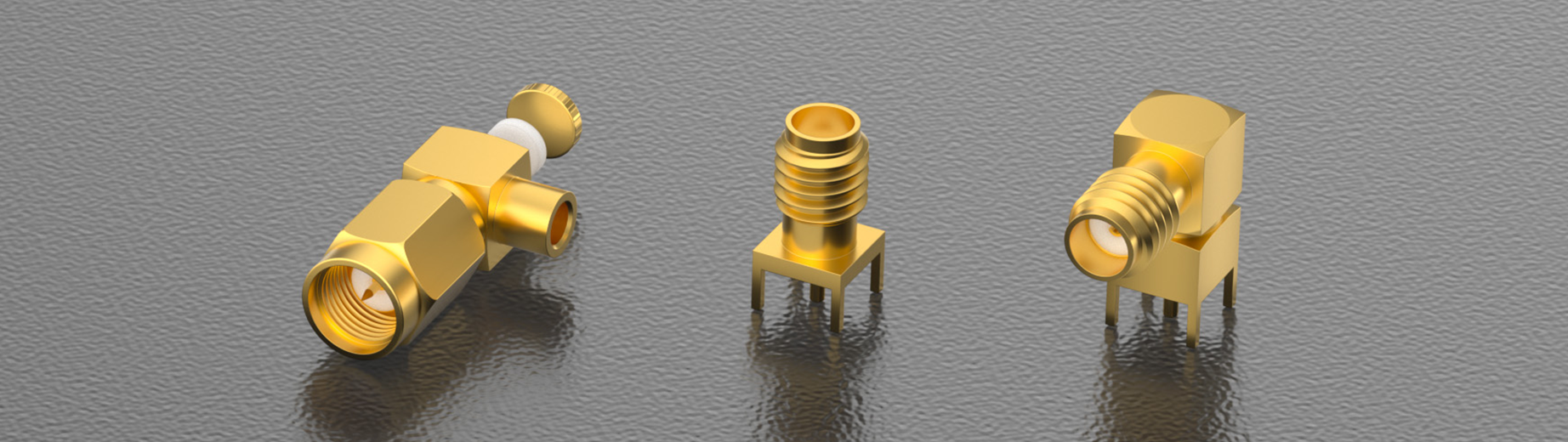

2、 SMA RF connector
The characteristic impedance of SMA RF connector is 50 Ω, standing wave ratio is 1.11Max, rated voltage is 335V, operating temperature coverage is -55 ℃~+150 ℃, and the frequency range can reach 0~18GHz. The product adopts a brass body with contact gold plating process, which combines excellent electrical transmission performance and environmental resistance, and can maintain stable connection in complex working conditions for a long time.

3、 SSMA RF connector
The SSMA RF connector is a miniaturized version of the SMA connector, with an overall size of only 70% of the standard SMA, and belongs to the compact 50 Ω RF coaxial connector. The product adopts a threaded locking connection method, with a frequency range of 3GHz, a standing wave ratio of 1.2Max, and a plug-in life of up to 500 times, suitable for high-frequency RF connection requirements in high-density layouts.

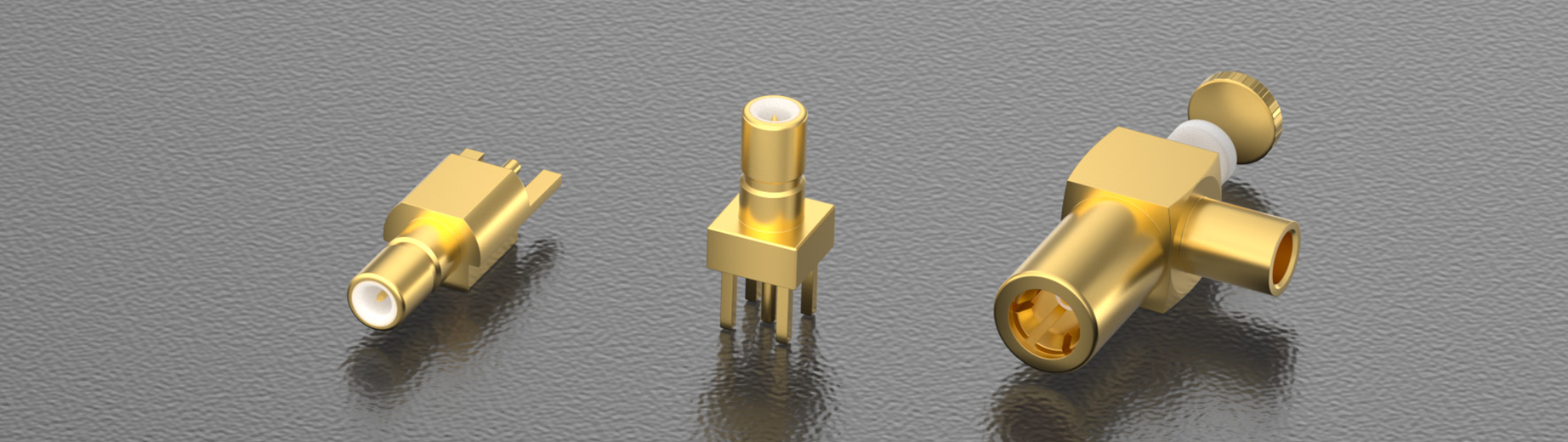

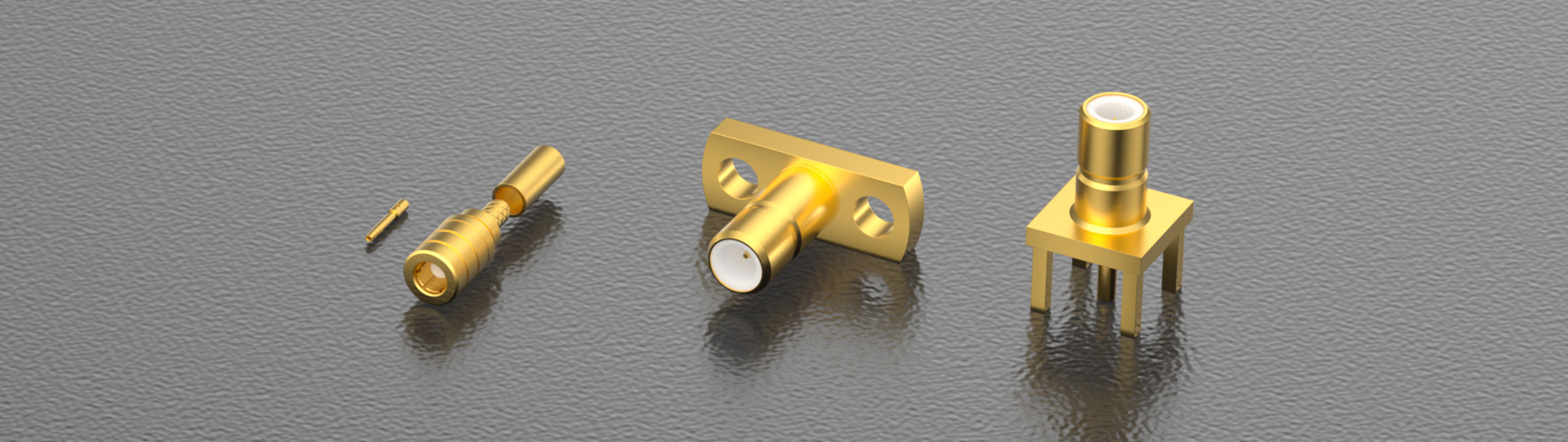

4、 SMB RF connector
SMB RF connectors strictly follow the MIL-C-39012 industry standard and belong to push in RF coaxial connectors. The product offers two characteristic impedance specifications of 50 Ω and 75 Ω, which can adapt to the transmission needs of different scenarios, with a working frequency range of 0-6GHz. Simultaneously supporting two installation directions of 90 ° and 180 °, combined with through-hole soldering and wire bonding installation processes, it can flexibly match various circuit layout designs.

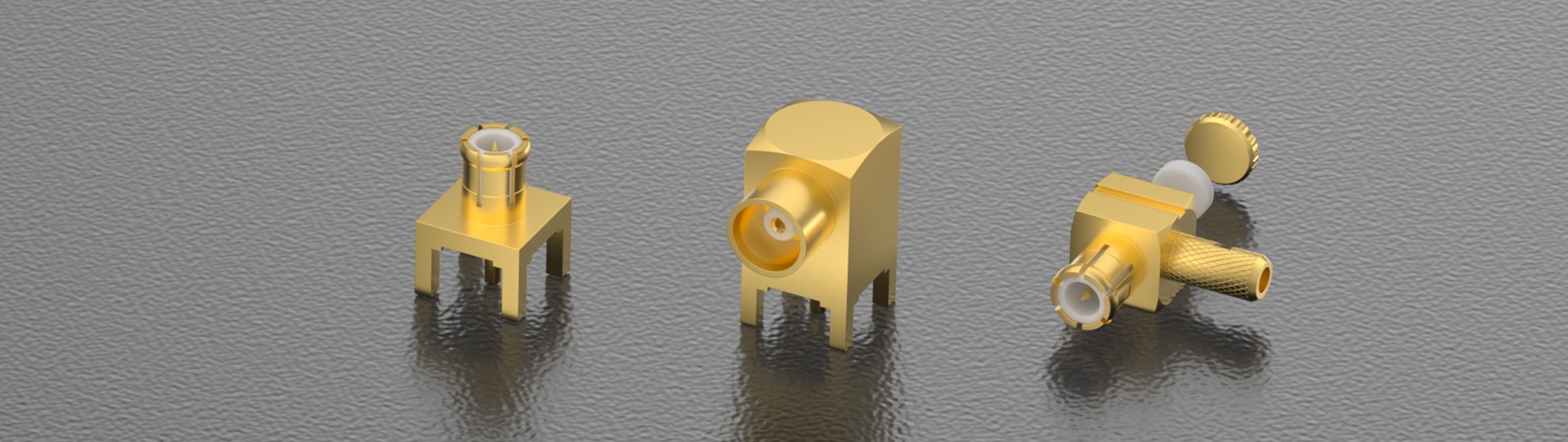

5、 SSMB RF connector
The volume of SSMB RF connector is only 70% of SMB connector, which is more suitable for the layout requirements of high-density circuit equipment. The product adopts a push in buckle structure, which is easy to operate, with a plug and unplug life of up to 500 times, a working frequency of up to 4GHz, and a working temperature range of -40 ℃~+125 ℃. It can achieve stable and reliable RF connection under harsh working conditions. The product supports two installation directions of 90 ° and 180 °, and is equipped with three installation methods: surface mount, through-hole welding, and wire bonding, providing users with multiple choices.

6、 SMP RF connector
The SMP RF connector adopts a push in non threaded structure, compatible with blind insertion, and supports X/Y direction misalignment compensation connection. Characteristic impedance 50 Ω, standing wave ratio 1.3 Max, low insertion loss. The working frequency covers DC~6GHz, making it an ideal solution for compact and reliable signal transmission in high-frequency scenarios.

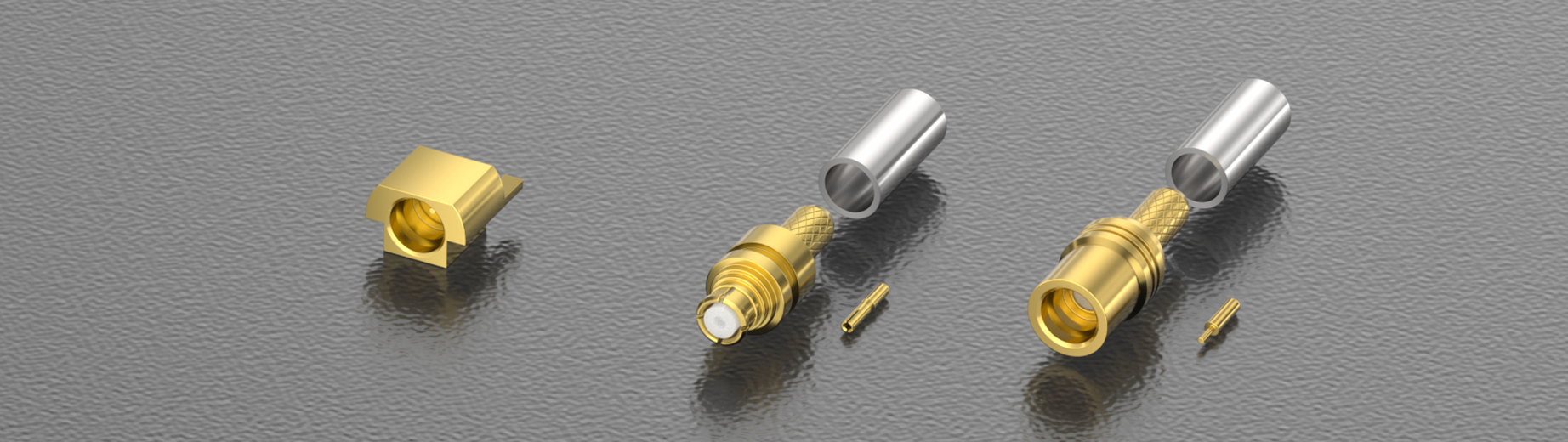

7、 MCX RF connector
The MCX RF connector adopts a push in connection structure, with a compact appearance and fast and convenient connection operation. The product has a rated operating frequency of up to 6GHz, a characteristic impedance of 50 Ω, and a standing wave ratio of 1.2Max. It is widely used in antenna connection scenarios for devices such as Wi Fi modules and GPS receivers.

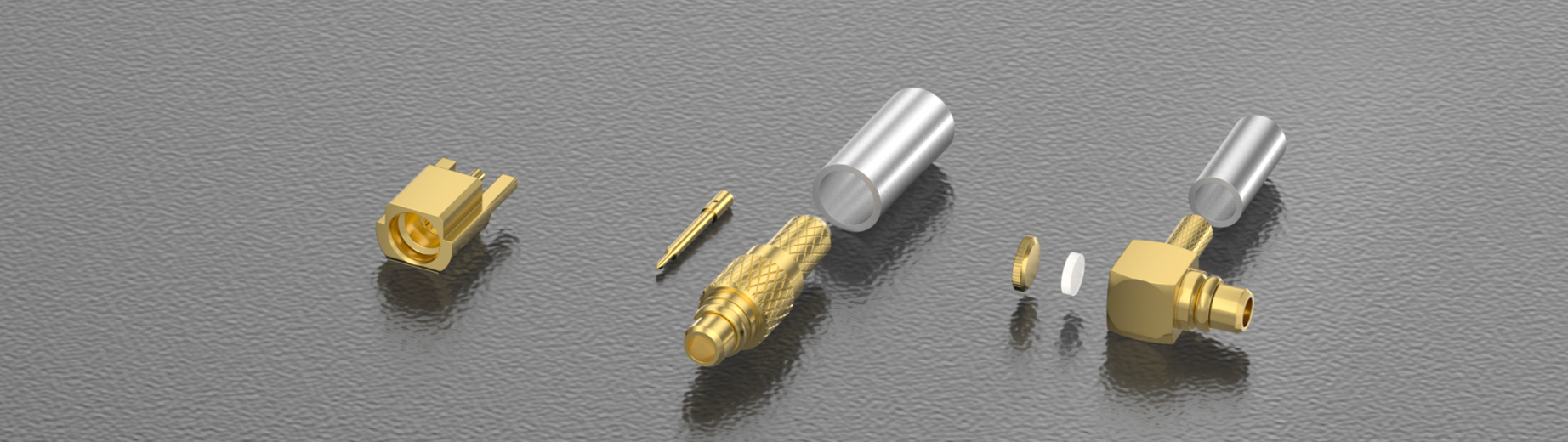

8、 MMCX RF connector
The MMCX RF connector adopts a plug-in self-locking connection structure, which has reliable anti vibration and anti impact performance. The product has a characteristic impedance of 50 Ω, a frequency coverage range of up to 6GHz, and a standing wave ratio of 1.25Max. It is currently widely used in small communication and network equipment that require system size and weight.

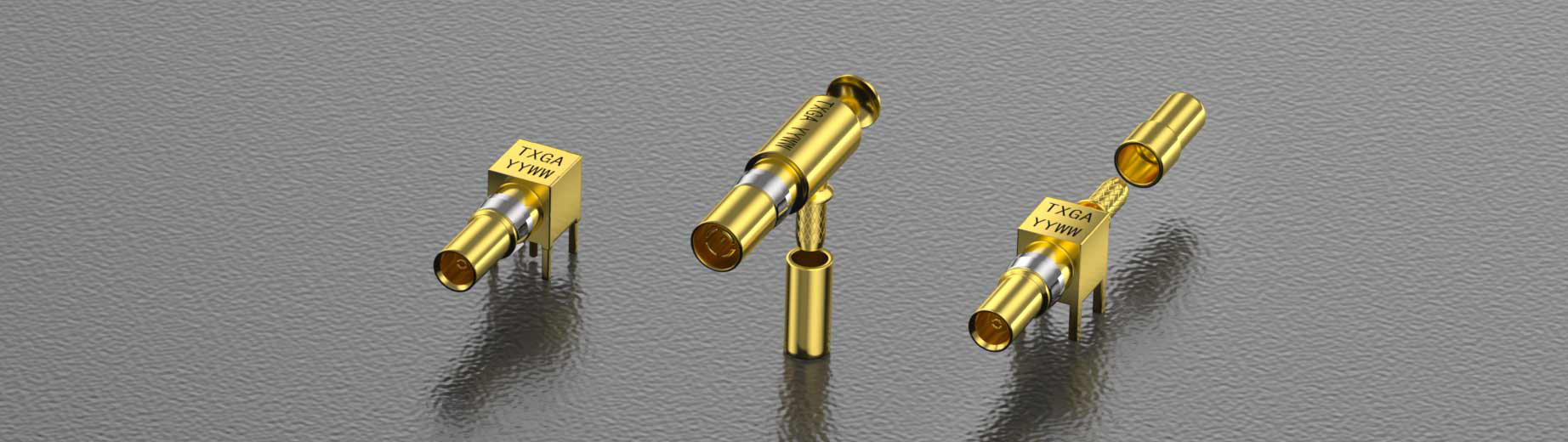

9、 1.0/2.3 RF connector
The 1.0/2.3 RF connector adopts a sliding connection structure, supporting tool free quick insertion and removal operations. The product has a characteristic impedance of 50 Ω, a frequency coverage range of 0-4GHz, and a standing wave ratio of 1.35Max, providing stable and reliable interconnection guarantee for high-frequency signal transmission. The product offers three installation methods: through-hole welding, hybrid welding, and riveting, which can adapt to the installation needs of different PCB boards.

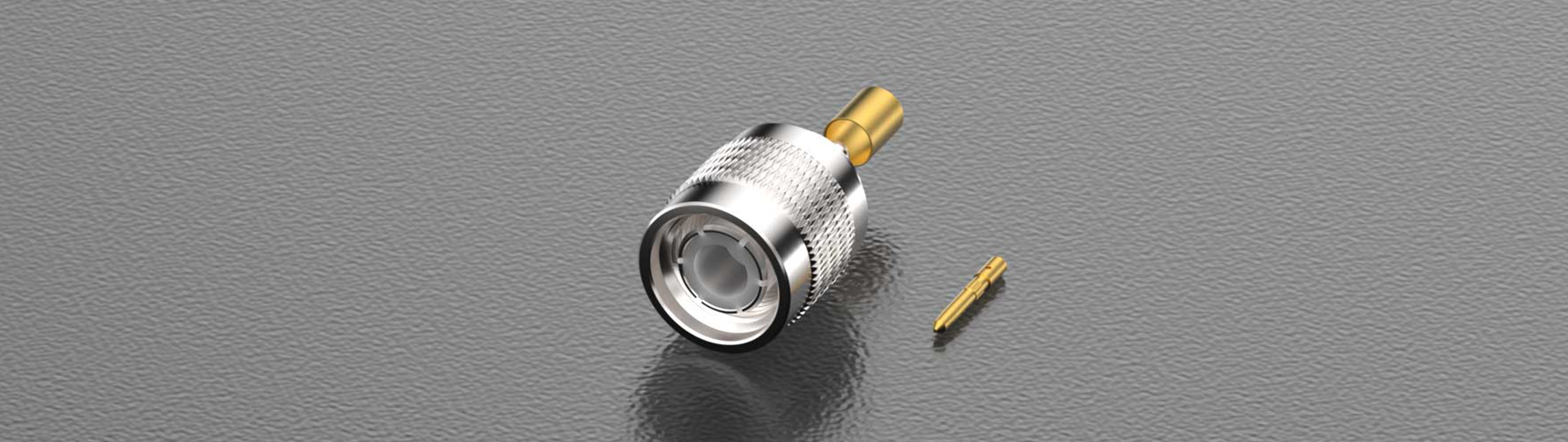

10、 TNC RF connector
The TNC RF connector adopts a threaded locking structure design, which is firmly connected and not easy to loosen after locking, especially suitable for complex working conditions with strong vibration and high impact. The product has a characteristic impedance of 50 Ω, a frequency coverage range of up to 6GHz, a standing wave ratio of 1.3 Max, a working temperature coverage of -55 ℃~+125 ℃, and a plug-in life of over 500 times, fully meeting the high reliability and long durability requirements of industrial grade equipment for RF connections.

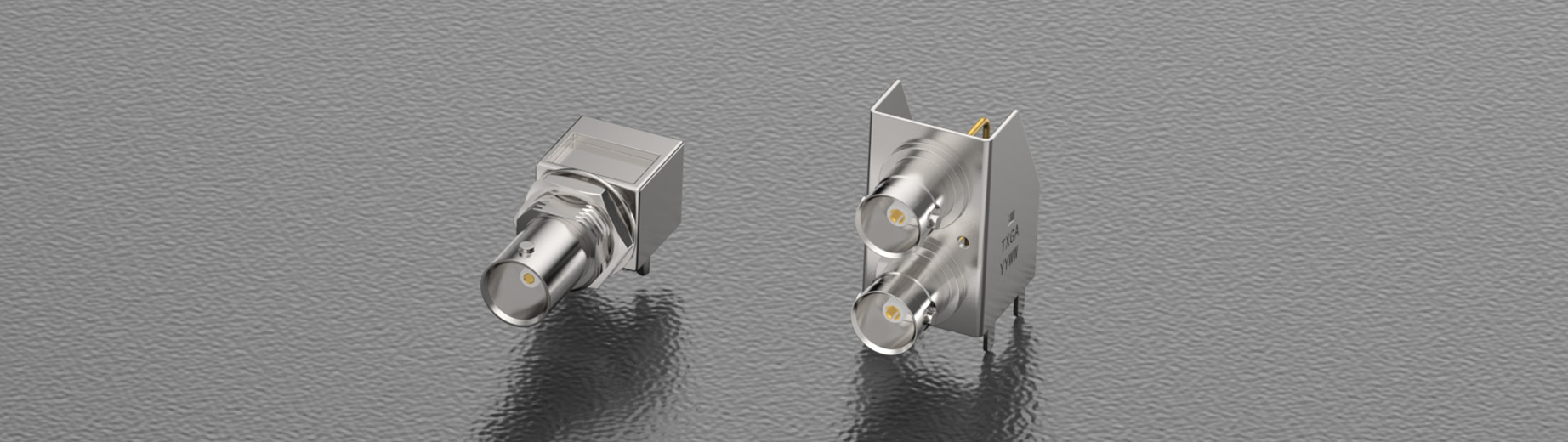

11、 BNC RF connector
BNC RF coaxial connector is a snap fit RF coaxial connector with a maximum frequency range of 4 GHz and a standing wave ratio of 1.3Max. It has the characteristics of easy use, quick connection and disconnection, and reliable contact. To meet the interchangeability and universality of products, the front-end interface of BNC RF coaxial connectors complies with the dimensions of IEC60169-8 standard.

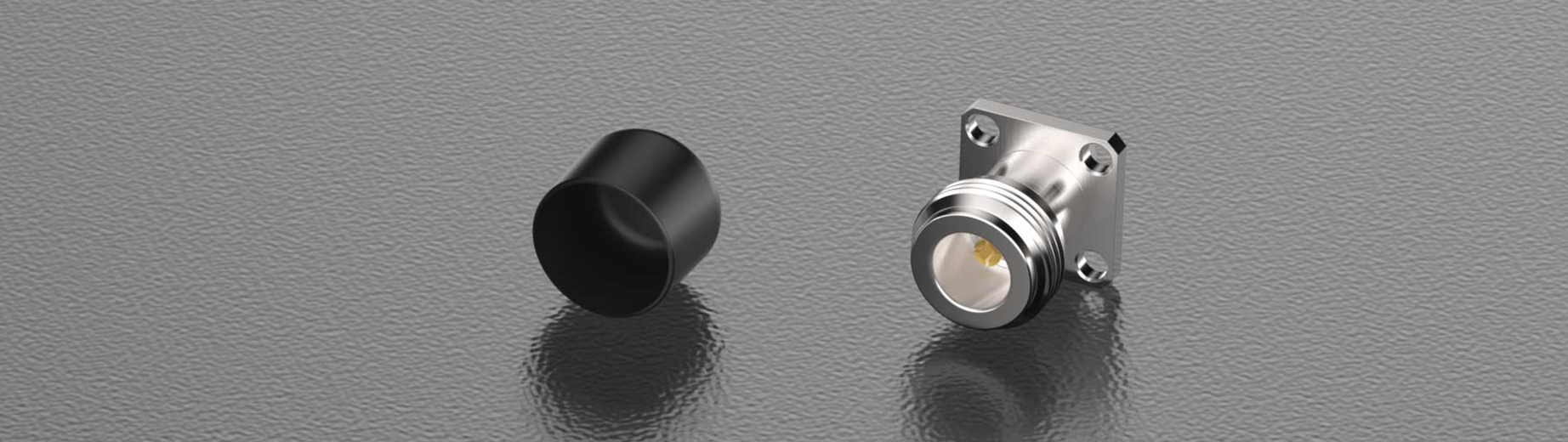

12、 N RF connector
The N-type RF connector adopts a threaded locking connection structure, which achieves extremely strong connection reliability with high contact density. The product has a characteristic impedance of 50 Ω, a frequency coverage range of up to 6GHz, a standing wave ratio of 1.3Max, and a working temperature coverage of -55 ℃~+125 ℃. Compared to quick lock connectors, N-type RF connectors are more suitable for special application scenarios such as high protection levels, extreme high and low temperatures, strong pressure, or strong vibration impacts.

Application Industry

Wireless communication, automotive equipment, aviation, drones, medical equipment, portable devices, sensors, testing and measuring equipment
