FM8C060401-B05R0200000

Download page

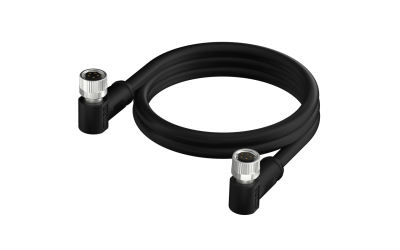

M8X1.0 B Coded 5pin, female right angle with shield , PUR cable length L=2M

Product Number：

FM8C060401-B05R0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

B coding

Shielded

Shielded

Cable Category

Female Bent to bent

Number of Positions

5Circuits

Angle-Key

90°

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Insulation Resistance

100 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Durability (Mating Cycles Max.)

100

Material

Material of Housing

Metal

Packaging

Packaging

PE Bag

{{item.nameEn}}

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C030401-B05E0200000

M8X1.0 B Coded 5pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-B05R0200000

M8X1.0 B Coded 5pin, male right angle single end, shield, PUR, cable length L=2M

FM8C080401-B05E0200000

M8X1.0 B Coded 5pin, male straight shield, PUR cable length L=2M

FM8C090401-B05R0200000

M8X1.0 B Coded 5pin, male right angle with shield , PUR cable length L=2m

FM8C110401-B05R0200000

M8X1.0 B Coded 5pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-B05R0200000

M8X1.0 B Coded 5pin, male straight to female right angle , shield , PUR cable length L=2m

FM8C130401-B05E0200000

M8X1.0 B Coded 5pin, female straight to male straight , shield , PUR cable length L=2M

FM8C140401-B05R0200000

M8X1.0 B Coded 5pin, female right angle to male right angle with shield, PUR, cable length L=2m

Receptacle

FM8ST0401-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , ST THT, with shield

FM8ST0402-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , RA THT, with shield

FM8ST0409-B05P104D00

Front fastened M8X1.0 male Socket circle , B-Coded, 5Circuits , Through Hole solder

FM8ST0410-B05P104D00

Front fastened M8X1.0 male Socket double section , B-Coded, 5Circuits , Through Hole solder

FM8WR0320-B05P104050000

Rear fastened M8X0.5 male Socket section , B-Coded , 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0520-B05P104050000

Rear fastened M10X0.75 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0420-B05P104050000

Front fastened M8x1.0 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

Product Introduction

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

B coding

Shielded

Shielded

Cable Category

Female Bent to bent

Number of Positions

5Circuits

Angle-Key

90°

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Insulation Resistance

100 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Durability (Mating Cycles Max.)

100

Material

Material of Housing

Metal

Packaging

Packaging

PE Bag

Data Download

Product Drawings

FM8C060401.pdf

Product Compliance

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

Plug

FM8C030401-B05E0200000

M8X1.0 B Coded 5pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-B05R0200000

M8X1.0 B Coded 5pin, male right angle single end, shield, PUR, cable length L=2M

FM8C080401-B05E0200000

M8X1.0 B Coded 5pin, male straight shield, PUR cable length L=2M

FM8C090401-B05R0200000

M8X1.0 B Coded 5pin, male right angle with shield , PUR cable length L=2m

FM8C110401-B05R0200000

M8X1.0 B Coded 5pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-B05R0200000

M8X1.0 B Coded 5pin, male straight to female right angle , shield , PUR cable length L=2m

FM8C130401-B05E0200000

M8X1.0 B Coded 5pin, female straight to male straight , shield , PUR cable length L=2M

FM8C140401-B05R0200000

M8X1.0 B Coded 5pin, female right angle to male right angle with shield, PUR, cable length L=2m

Receptacle

FM8ST0401-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , ST THT, with shield

FM8ST0402-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , RA THT, with shield

FM8ST0409-B05P104D00

Front fastened M8X1.0 male Socket circle , B-Coded, 5Circuits , Through Hole solder

FM8ST0410-B05P104D00

Front fastened M8X1.0 male Socket double section , B-Coded, 5Circuits , Through Hole solder

FM8WR0320-B05P104050000

Rear fastened M8X0.5 male Socket section , B-Coded , 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0520-B05P104050000

Rear fastened M10X0.75 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0420-B05P104050000

Front fastened M8x1.0 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm
