FM8C140401-B05R0200000

Download page

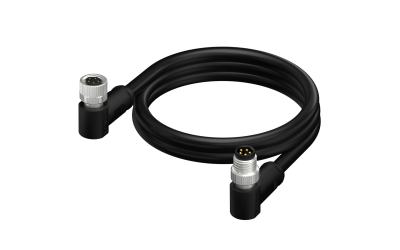

M8X1.0 B Coded 5pin, female right angle to male right angle with shield, PUR, cable length L=2m

Product Number：

FM8C140401-B05R0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

B coding

Number of Positions

5Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-B05E0200000

M8X1.0 B Coded 5pin, female straight single end, shielded，PUR, cable length L=2M

FM8C020401-B05R0200000

M8X1.0 B Coded 5pin, female right angle single end, shield, PUR, cable length L=2M

FM8C030401-B05E0200000

M8X1.0 B Coded 5pin, male straight single end, shielded，PUR, cable length L=2M

FM8C040401-B05R0200000

M8X1.0 B Coded 5pin, male right angle single end, shield, PUR, cable length L=2M

FM8C050401-B05E0200000

M8X1.0 B Coded 5pin, female straight with shield, PUR cable length L=2m

FM8C060401-B05R0200000

M8X1.0 B Coded 5pin, female right angle with shield , PUR cable length L=2M

FM8C080401-B05E0200000

M8X1.0 B Coded 5pin, male straight shield, PUR cable length L=2M

FM8C090401-B05R0200000

M8X1.0 B Coded 5pin, male right angle with shield , PUR cable length L=2m

FM8C110401-B05R0200000

M8X1.0 B Coded 5pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-B05R0200000

M8X1.0 B Coded 5pin, male straight to female right angle , shield , PUR cable length L=2m

FM8C130401-B05E0200000

M8X1.0 B Coded 5pin, female straight to male straight , shield , PUR cable length L=2M

FM8C140401-B05R0200000

M8X1.0 B Coded 5pin, female right angle to male right angle with shield, PUR, cable length L=2m

Receptacle

FM8SR0317-B05S104W00

Rear fastened M8X0.5 female Socket circle , B-Coded , 5Circuits , solder

FM8SR0318-B05S104W00

Rear fastened M8X0.5 female Socket with double section , B-Coded , 5Circuits , solder

FM8SR0517-B05S104W00

Rear fastened M10X0.75 female Socket circle , B-Coded , 5Circuits , solder

FM8SR0518-B05S104W00

Rear fastened M10X0.75 female Socket double section , B-Coded , 5Circuits , solder

FM8ST0401-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , ST THT, with shield

FM8ST0402-B05P104D00

Front fastened M8x1.0 male Socket with section , B-Coded, 5Circuits , RA THT, with shield

FM8ST0409-B05P104D00

Front fastened M8X1.0 male Socket circle , B-Coded, 5Circuits , Through Hole solder

FM8ST0410-B05P104D00

Front fastened M8X1.0 male Socket double section , B-Coded, 5Circuits , Through Hole solder

FM8ST0503-B05S104D00

Front fastened M10X0.75 female Socket with section , B-Coded, 5Circuits , ST THT, with shield

FM8ST0504-B05S104D00

Front fastened M10X0.75 female Socket with section , B-Coded, 5Circuits , RA THT, with shield

FM8ST0507-B05S104D00

Front fastened M10X0.75 female Socket circle , B-Coded, 5Circuits , ST THT, with shield

FM8ST0508-B05S104D00

Front fastened M10X0.75 female Socket circle , B-Coded, 5Circuits , RA THT, with shield

FM8ST0511-B05S104D00

Front fastened M10X0.75 female Socket circle , B-Coded, 5Circuits , ST THT, without shield

FM8ST0512-B05S104D00

Front fastened M10X0.75 female Socket with section , B-Coded, 5Circuits , ST THT, without shield

FM8ST0812-B05S104D00

Front fastened M12X1.0 female Socket with section , B-Coded , 5Circuits , ST THT, without shield

FM8WR0320-B05P104050000

Rear fastened M8X0.5 male Socket section , B-Coded , 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0321-B05S104050000

Rear fastened M8X0.5 female Socket circle , B-Coded , 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0322-B05S104050000

Rear fastened M8X0.5 female Socket section , B-Coded , 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0520-B05P104050000

Rear fastened M10X0.75 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0521-B05S104050000

Rear fastened M10X0.75 female Socket circle, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WR0522-B05S104050000

Rear fastened M10X0.75 female Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0420-B05P104050000

Front fastened M8x1.0 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0517-B05S104050000

Front fastened M10X0.75 female Socket circle, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0518-B05S104050000

Front fastened M10X0.75 female Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

FM8WT0718-B05S104050000

Front fastened M12X1.0 female Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$13.181076

10+

$12.077242

50+

$11.103271

100+

$10.194231

500+

$9.155329
