FM8WR0520-B05P104050000

Download page

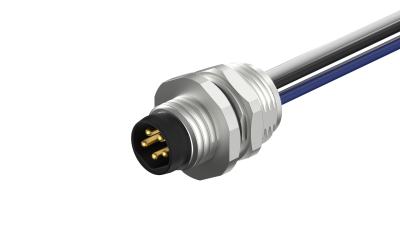

Rear fastened M10X0.75 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm

Product Number：

FM8WR0520-B05P104050000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

B coding

Number of Positions

5Circuits

Cable Length(mm)

L=500mm

Electrical

Current(Max)

4A

Voltage(Max)

60V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

{{item.nameEn}}

{{file.fileName}}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM8C010401-B05E0200000

M8X1.0 B Coded 5pin, female straight single end, shielded，PUR, cable length L=2M

FM8C020401-B05R0200000

M8X1.0 B Coded 5pin, female right angle single end, shield, PUR, cable length L=2M

FM8C050401-B05E0200000

M8X1.0 B Coded 5pin, female straight with shield, PUR cable length L=2m

FM8C060401-B05R0200000

M8X1.0 B Coded 5pin, female right angle with shield , PUR cable length L=2M

FM8C110401-B05R0200000

M8X1.0 B Coded 5pin, female straight to male right angle , shield, PUR, cable length L=2m

FM8C120401-B05R0200000

M8X1.0 B Coded 5pin, male straight to female right angle , shield , PUR cable length L=2m

FM8C130401-B05E0200000

M8X1.0 B Coded 5pin, female straight to male straight , shield , PUR cable length L=2M

FM8C140401-B05R0200000

M8X1.0 B Coded 5pin, female right angle to male right angle with shield, PUR, cable length L=2m

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$3.946921

10+

$3.625879

50+

$3.285953

100+

$3.021566

500+

$2.719409

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 5

MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs

FM8WR0520-B05P104050000

Rear fastened M10X0.75 male Socket section, B-Coded, 5Circuits，Recessed Terminal，lite Length 500mm
