TXGA micro D-shaped connector for higher density electrical interconnection of compact devices

With the increasing development of electronic devices towards miniaturization and lightweight, traditional D-shaped connectors are difficult to meet the high-density wiring needs of new devices due to their large size.

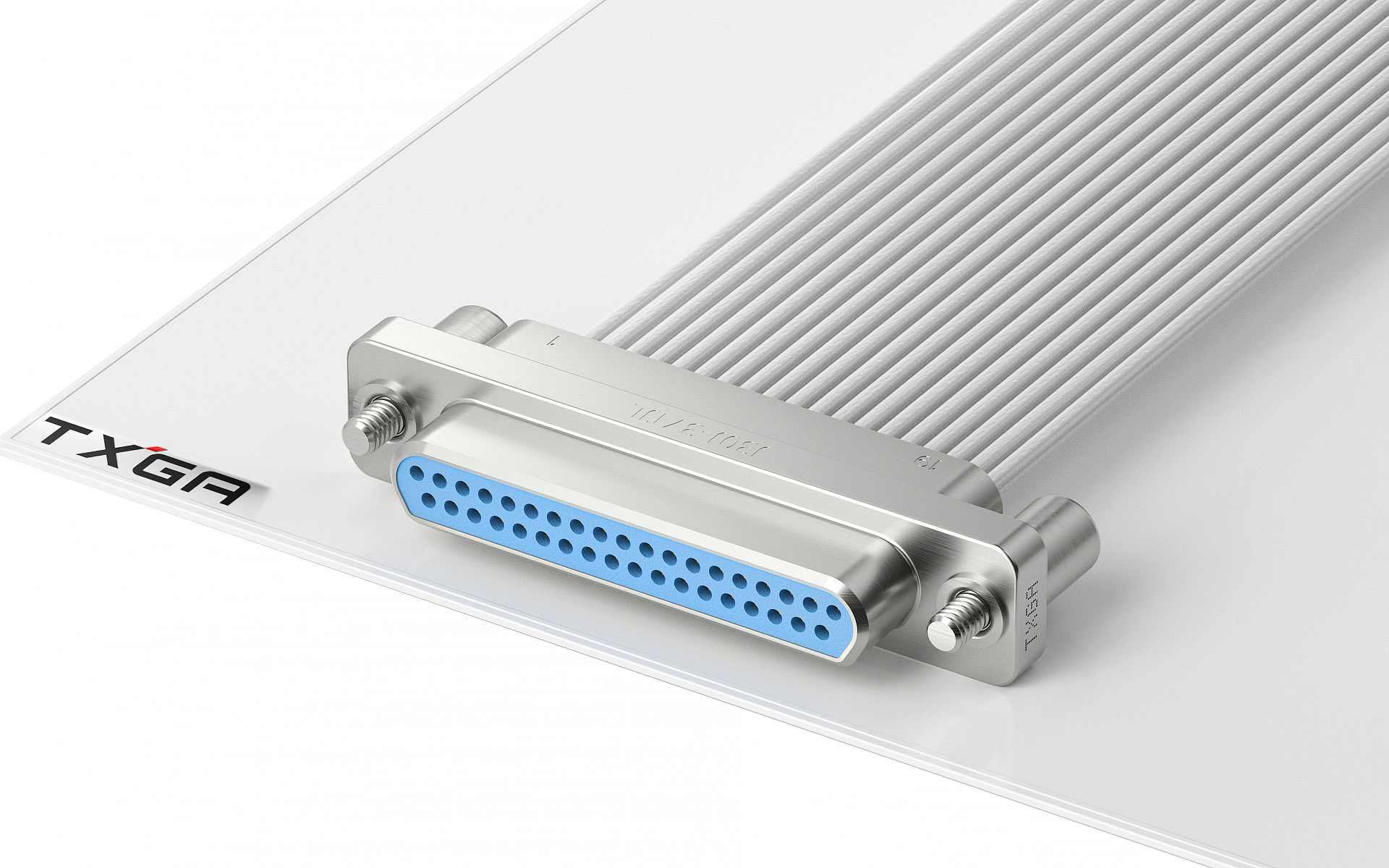

The TXGA micro D-shaped connector adopts a precision design. The contact spacing of the product is 1.27 millimeters, and the volume is about 50% of the standard D-shaped connector, which can effectively save installation space and achieve higher density electrical interconnection for compact equipment.
performance parameter
Current (maximum) 1A
Voltage (maximum) 300V
Contact resistance 10 m Ω Max
Insulation resistance 5000 M Ω Min
Product advantages
Contact spacing is only 1.27 millimeters, suitable for miniaturized equipment
Sturdy structure, reliable and durable
Provide a rich product portfolio
The product has a plugging life of 500 times
Capable of working in environments ranging from -55 ℃ to+125 ℃
Industry applications
The micro D-shaped connectors developed and produced by TXGA have been widely used in medical equipment, satellites, robots, handheld devices, Earth geography, and other fields.
