A terminal block is a wiring device that quickly connects multiple wires to a PCB board, with functions such as fixing wires, distributing current, and connecting electrical appliances.

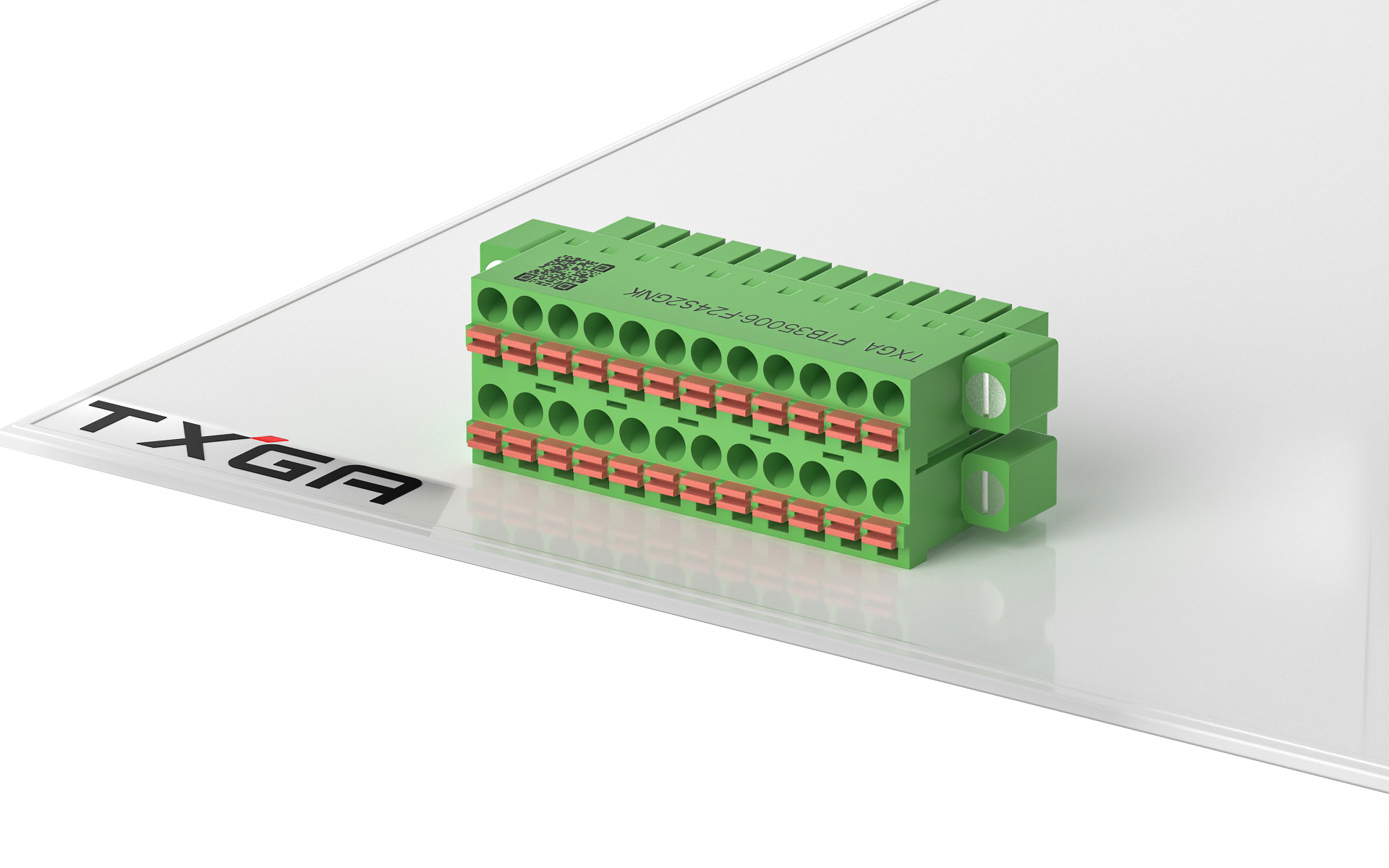

The TXGA wiring terminal is equipped with a stainless steel spring clip structure inside the plug wire hole. After the wire is peeled, it can be directly inserted into the wire hole for installation, making the operation convenient. The plug and socket of the product adopt a screw locking structure, which can strengthen the interconnection and ensure the stability of the connectors, achieving convenient and reliable electrical interconnection for the equipment.
performance parameter
Maximum current per contact 12A
Voltage - maximum 300V
Contact resistance 20 m Ω Max
Insulation resistance 1000 M Ω Min
Product advantages
The male and female heads are fixed with screws and firmly inserted into each other
The spring clip is made of stainless steel material, reliable and durable
The main body is made of PA66 resin material, with high mechanical strength
The product can operate in environments ranging from -40 º C to+105 º C
Industry applications
The wiring terminals developed and produced by TXGA have been widely used in industrial control systems, program-controlled switches, instruments, security, new energy vehicles, micro sensors, industrial cameras, and other fields.
