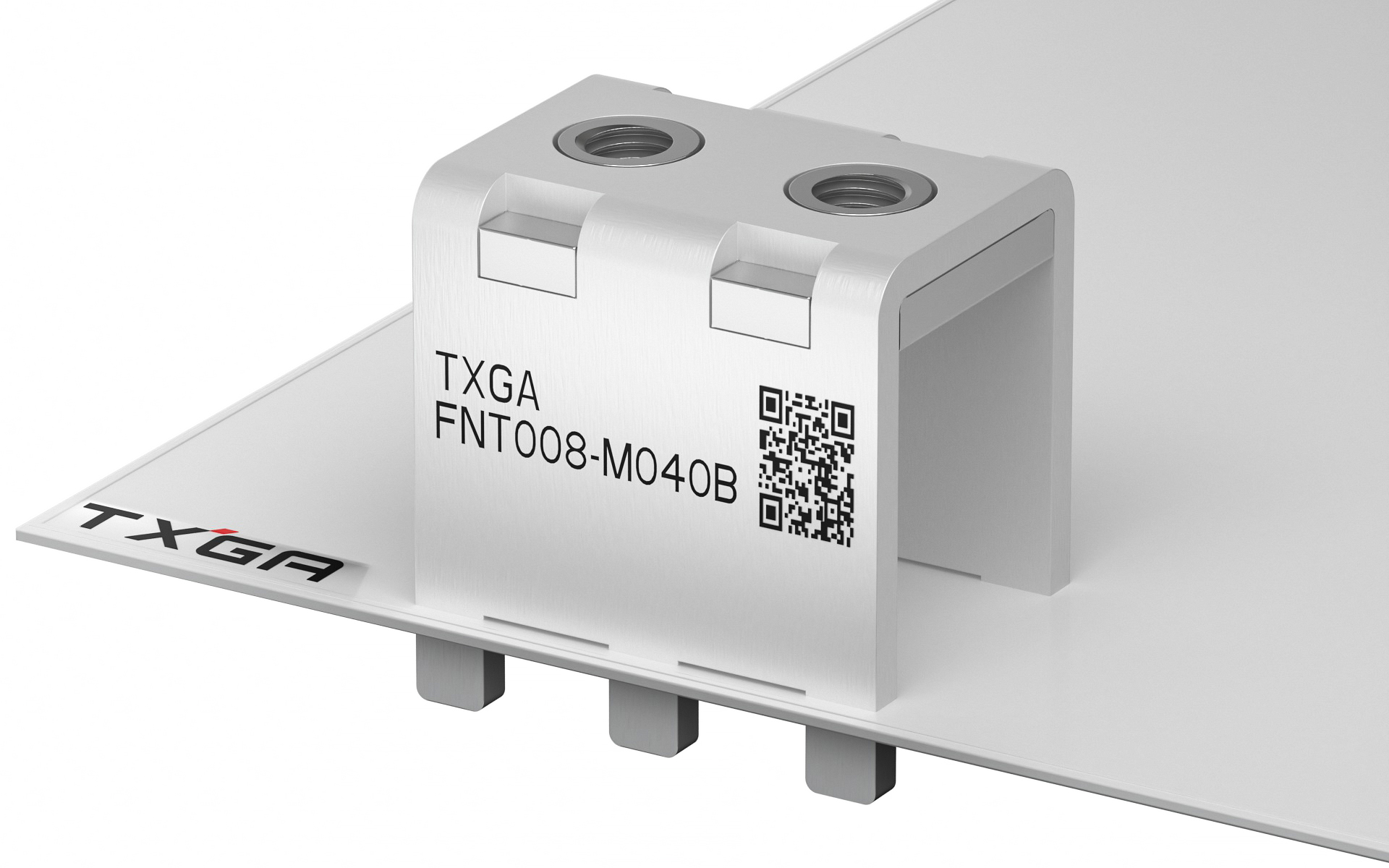

Nut terminal is a connector that can easily connect wires to a PCB board, usually used in conjunction with screws and wiring lugs.
After inserting the nut terminal into the PCB board and welding it for fixation, simply align the circular hole at the top of the wiring nose with the circular hole of the nut terminal and tighten it with screws to complete the wiring installation. Loosen the screws during maintenance to replace the wiring nose, making the wiring of the PCB board more flexible. At the same time, the high contact pressure brought by screw fixation can prevent the wiring nose and nut terminals from loosening easily in vibration environments, achieving flexible and reliable wiring for the PCB board.
performance parameter
Current (maximum) 120A
Thread pressing screw hole M4
Screw torque 13 Ibf in
Height on board 17mm
Product advantages
Main body coated with fog tin
The gasket is made of stainless steel material, with high strength and corrosion resistance
Can be used in conjunction with square washer screws and round washer screws
The product can operate in environments ranging from -40 º C to+120 º C
Industry applications
The nut terminals developed and produced by TXGA have been widely used in fields such as telecommunications, electrical, computer, network communication, transportation, industrial electronics, medical electronics, etc.
