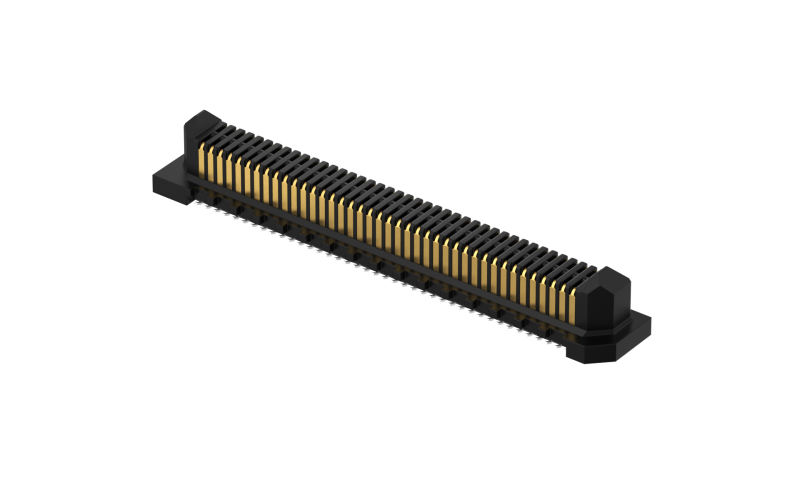

TXGA high-speed board provides high contact force to board connectors, ensuring reliable connections.

TXGA high-speed board provides high contact force to board connectors to ensure reliable insertion. The connector supports 13 stacking heights and offers 20, 30, 40, 50, 60, 80, 100, 120, and 180 digit options, suitable for high-density applications. Its applications include high-end computers, routers, servers, test cards/card extenders, and more.

Characteristics of this type of fine spacing board for board products:

1. High contact force ensures reliable insertion

2. Robust plug-in provides powerful connectivity

3. Support strong signal integrity

4. Polarization key at the edge of the pin

5. Optimize high-speed performance at all stack heights

Can meet the electrical requirements of SAS, SAS-3, 12GT/s standards, and is currently planning to meet the electrical requirements of SAS-4, 24GT/s standards; 0.8mm B2B connections at all stacking heights meet the electrical requirements of PCI Express GEN3, 8GT/s and GEN4, 16GT/s

Optional application areas: high-end computing, test cards and card extenders, routers, servers, IP phones, telecommunications/data communication equipment, testing and measurement equipment.
