TXGA SMA connector can effectively reduce RF signal loss

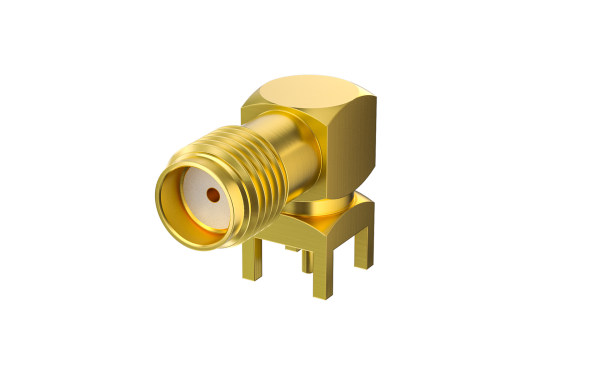

TXGA high-performance SMA RF connector adopts brass body and gold-plated contacts, with excellent electrical and environmental performance.

Characteristic impedance 50 Ω

Standing Wave Ratio 1.35 Max

Voltage - Maximum 335V

Insulation resistance 5000M Ω Min

Withstand voltage 1000V AC r.m.s

Working temperature range -55 ℃+125 ℃

Frequency range 0~6GHz

The shielding layer of the product's supporting connecting wire adopts silver plated copper braided shielding, which can reduce RF signal loss, improve transmission accuracy and stability, and achieve excellent RF performance. The main application areas include wireless applications, base stations, telecommunications, consumer devices, household appliances, antennas, information and entertainment, factory automation, enterprises, the Internet of Things, aviation electronics, testing and measurement, and autonomous driving.
