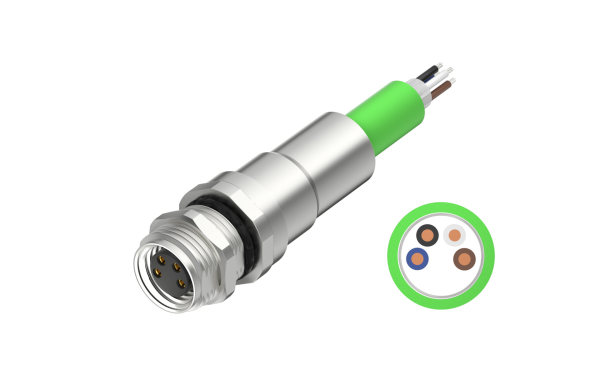

TXGA M8 circular connector, small size and high reliability, suitable for various interconnection needs in industrial sites

The TXGA M8 circular connector achieves a compact layout with an external thread diameter of only 8mm, balancing the integrated transmission capabilities of signals, data, and power. It maintains stable performance under harsh working conditions and provides highly adaptable connection options for various industrial equipment.

Efficient and stable signal transmission
The types of connectors include shielded and unshielded. Shielded products can effectively reduce EMI and RFI interference, ensuring the stability and reliability of signal transmission. Among them, the M8 circular connector encoded with D can achieve a data transmission rate of 100MB/S, meeting the high-speed data transmission requirements of modern industrial equipment.

Threaded connection and embedded quick plug are optional
The interconnection methods of the product include threaded connections and embedded quick plugs. Embedded quick plug operation is simple and convenient, which can effectively reduce the number of insertion steps and improve operational efficiency. The threaded connection is securely installed, providing higher vibration resistance and waterproof performance. Meet the application needs of different devices.

Anti vibration and anti impact
The product has passed the vibration test with a frequency of 10-500HZ, an amplitude of 0.35mm, and a maximum acceleration of 50mm/s ². Stable and reliable connections can be achieved in industrial equipment with strict anti vibration requirements.

Compliance Design
The A and B codes of the product fully comply with the IEC61076-2-104 standard, and the D code strictly follows the IEC61076-2-114 standard, which can directly adapt to the universal interfaces of mainstream industrial equipment without the need for additional mold modification and adaptation, greatly reducing the cost of selection and docking.

Rich specifications
The product has a core count of 2-8 pins and is compatible with three types of codes: A, B, and D. It is compatible with commonly used wire gauges of 22, 24, and 26 AWG and has various structural forms such as straight plugs, bent plugs, PCB sockets, and wired sockets. It can flexibly adapt to the installation space and wiring requirements of different devices.

Application Industry
At present, TXGA M8 circular connectors have been widely used in industrial equipment such as automation sensors, actuators, controllers, industrial gateways, embedded computers, etc., providing stable support for signal, data, and power transmission of industrial fieldbus.
