TXGA (Tesla) Box Header: Space Optimization Solution for Compact PCB Interconnection

TXGA Box header are designed specifically for compact interconnect scenarios at the PCB board level, achieving efficient utilization of PCB space through structural simplification. They provide lightweight and highly reliable signal and weak current transmission solutions for applications that do not require high connection firmness.

Core structural characteristics

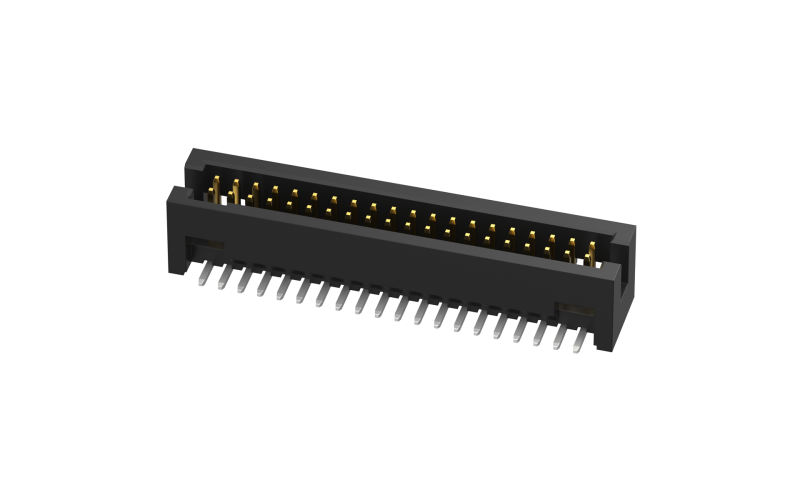

The main body of the Jianniu connector adopts a square resin base, matched with an array of square pin contacts, with the core function of stable transmission of control signals and weak currents on the PCB board. Compared to traditional hooked horn connectors, the product eliminates the two side buckle structure, directly reducing the footprint of the connector on the PCB board, greatly freeing up PCB wiring space, and adapting to high-density circuit layout requirements.

Performance Parameters
Maximum current per contact 1.00A
Voltage - Maximum 250 V
Contact resistance 20 m Ω Max
Insulation resistance 500 M Ω Min
Withstand voltage 500V AC r.m.s

Product Advantages
1. Covering the full range of pin spacing including 1.27mm, 2.00mm, 2.54mm, etc., fully matching the mainstream layout requirements in the market
2. Compatible with both through-hole welding and surface mount installation processes, suitable for different production lines
3. The terminals are treated with gold plating, which is resistant to oxidation and corrosion, ensuring long-term data transmission stability
4. The working temperature covers -25 ℃~80 ℃ and can operate stably in conventional industrial environments

At present, TXGA Box header have been widely used in CNC machine tools, engineering excavation equipment, precision instruments and meters, security systems, intelligent barrier gates, communication equipment, automotive industry, artificial intelligence equipment and other fields, providing reliable interconnection support for compact circuit design of various electronic devices.
